Description
Feature:
4K HDMI 7 Inch field monitor use IPS 1920*1200 high resolution
Wide viewing angle hard screen technology(Physical resolution:1920*1200)
Desview professional color technology!True color High Definition No color
cast accurate distortion,Shooting images showing real sporty!
Perfectly support for all signal formats, compatible with almost all professional camera camcorder of the market!
Professional software features:

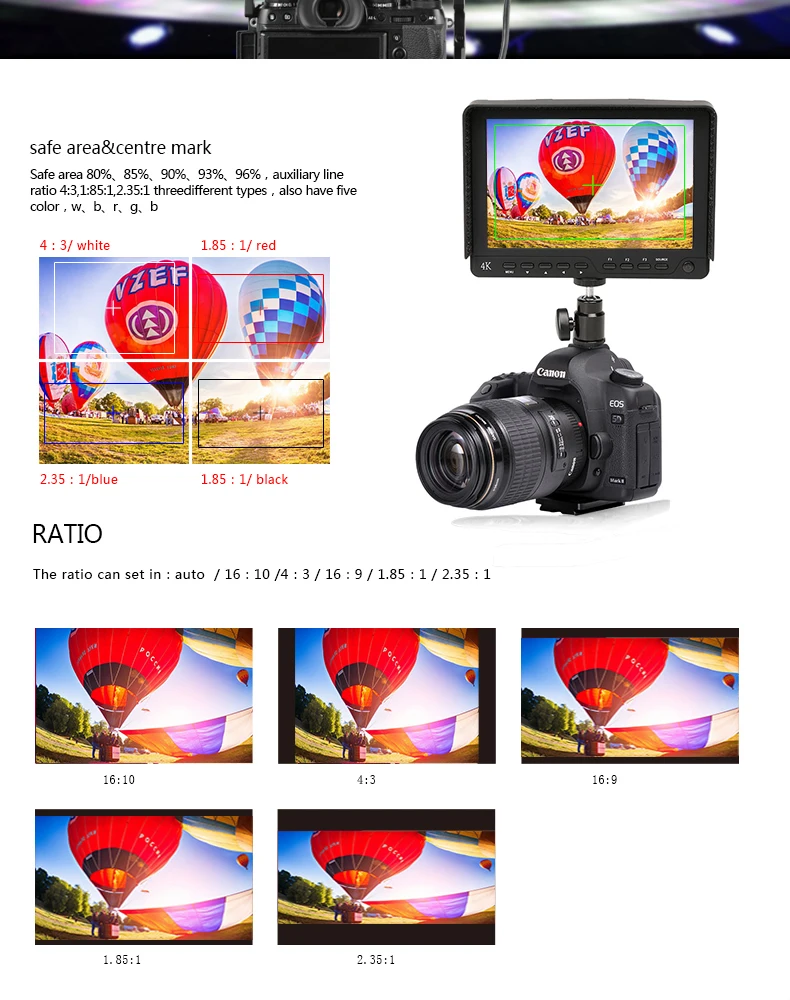

Peaking filter(Monochrome),Check field,Center mark(five color),Safe
area,Under scan/Over Scan,Ratio,Check Field(B/W/R/G/B),DSLR
mode,Display mode switching(five modes),Pixel to pixel,Freeze,Up and down
flip(U/D,R/L),Noise
Reduction,Desview 10x zoom in(X1.4\X2\X4\X8\X10);
Professional and comprehensive interfaces:HDMI input and output,3G-SDI
input and output
Technical Parameters:
Model:S7II
Description:7 Inch 4K HDMI/3G-SDI monitor
Case color:Black
Display type:Ratio of 16: 9, the new 7-inch digital high-definition LCD , has a thin, LED
back light, wide viewing angle,
Display area:151.2(W) ×94.5(H)mm
Resolution:1920*1200
Response time:10/15(TPY)(Tr/TD)
Display menu (OSD) / push-button control
Brightness:450CD/M²
Ratio:1100:1
View angel:L/R 178°(89°/89°),U/D 178°(89°/89°)
LED Back light life: 50,000 hours
Input signal: HDMI,3G-SDI
Output signal:HDMI,3G-SDI
|
HDMI | 720*480i&720*480p @59.94, 60Hz 720*576i & 720*576p @50Hz 1280*720P@ 50, 59.94, 60Hz 1920*1080i @ 50, 59.94, 60Hz 1920*1080psf @ 24, 25, 29.97, 30Hz 1920*1080psf @23.93, 24, 25, 29.97,30,50,59.94,60Hz
|
| 3G-SDI | 720*480i @59.94, 60Hz 720*576i & 720*576p @50Hz 1280*720P@ 50, 59.94, 60Hz 1920*1080i @ 50, 59.94, 60Hz 1920*1080psf @ 24, 25, 29.97, 30Hz 1920*1080P @23.93, 24, 25, 29.97,30,50,59.94,60Hz |
Power: AC Built: 110V-240VAC, 50-60 Hz / DC 12V 2A
Power: ≤11W TPY
Wide Voltage: AC 110V-240V, DC9V-24V
Temperature range: -10 ℃ -60 ℃ Operating Storage: -20 ℃ -80 ℃
Relative humidity: not condense the state, Humidity 10% -90% Storage humidity 5%
-90%
Warranty: One year warranty and lifetime free maintenance. Certifications:FCC, CE, ROHS,KCC
Accessories:
1.Suns-hood
2.Sun-hood frame
2 Battery plates Sony F970 and Canon LP-E6
3.HDMI cables
4.Screws
5.Hot shoes
8.Standard power adapter (different country with different specifications)
9. Standard Operating Instructions (available in English)
Application:
Broadcast photography
Conference occasions
news media
Medical Equipment
Photographers
Custom solutions and OEM, ODM
Additional information
| Weight | 1.5 kg |
|---|
