Desview SP17-HDR Portable UHD 4K HDMI Quad-Split Broadcast Director’s Monitor

The SP17-HDR is designed for field or studio work such as ENG, broadcast studios, and post production environments.

It supports UHD 3840 x 2160 IPS HD video, and it has a contrast ratio of 1000:1, 10-bit color depth, 400 cd/m² brightness, and Rec. 709 color calibration.

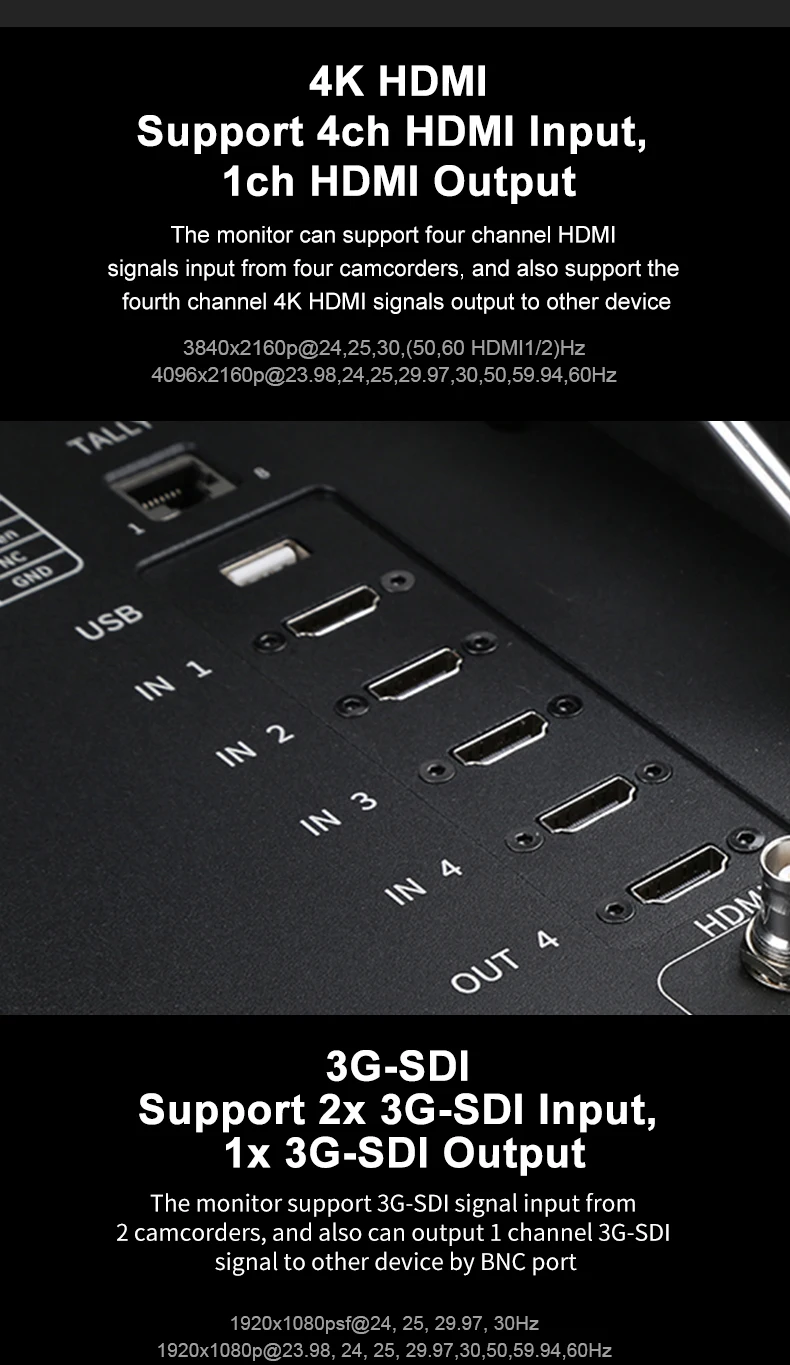

The monitor features four HDMI 2.0 inputs and can display up to four 4K sources in a quad PIP/PBP format simultaneously, and additional 3G-SDI and DVI/VGA sources can also be switched in. The monitor has a headphone jack and a two-channel audio line-level output. The monitor also includes an RJ45 tally port. Settings and controls are configured with the buttons in the base of the case.

The portable monitor is installed in a rugged, military-grade plastic case and includes a V-mount battery plate when mains power is unavailable. The case also supports an optional Gold mount plate. The package also includes a sun hood, HDMI cable, SDI cable, XLR AC power adapter, and a cleaning cloth.
