Kiloview D260 4-Channel HD H.265 HDMI&SDI Decoder

$ 3,383

D260 is Kiloview’s newest H.265 1X3G-SDI+2XHD HDMI decoder which builds on the capabilities of our original decoder DC230 with expanded new features including upgraded decoding performance, extended ports, more protocols supported and a new LCD screen. Everything your need about decoding is packaged in this single unit with low cost.

Description

Upgrading Decoding Performance with H.265/H.264

D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom to single display or PIP with adjustable figures.

More Protocols Supported

For all IP-based video transmission process, D260 supports the latest NDI technology – NDI|HX3*, NDI|HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP

*: NDI|HX3 feature is under development and we will confirm when it has been certified by NDI.lQLPJwmn2skhh1TNA jNB0SwW1D3RyTTjrwDp5s7BIAIAA 1860 1000

Extended Output Interfaces

As an upgraded version of DC230, D260 adds a couple more interfaces for advanced application. Now D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port and 2 USB ports(one USB Type-A and one USB Type-C)to ensure the scalability, It’s capable for outputting in three ways: Independently, Combine multi-channel video flows or replicate of one single flow to stream simultaneously.Screenshot 2023 09 22 123405 jpg

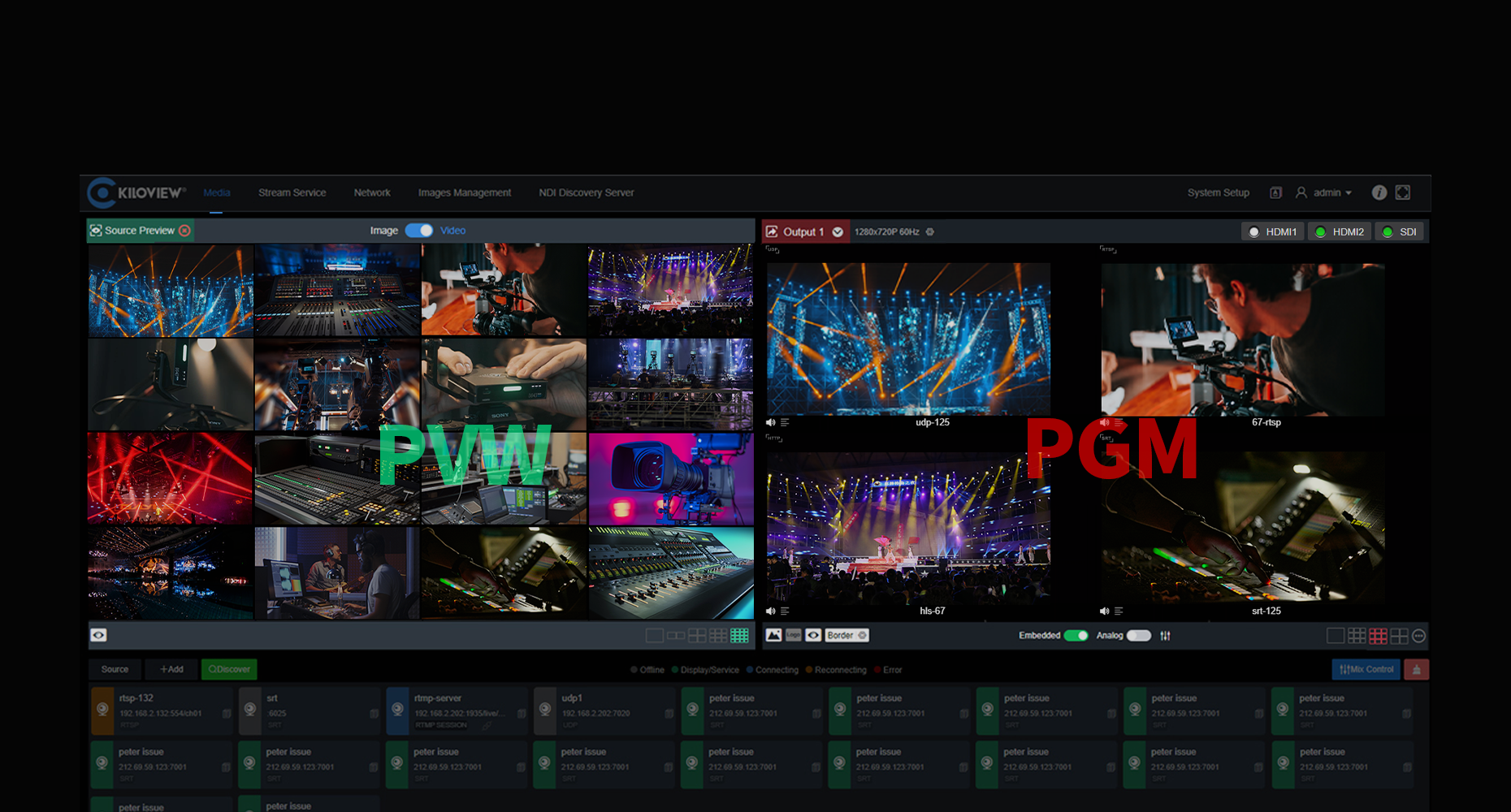

16 Preview + 4 Output

D260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).d260EN 07

Powerful Audio Decoding

D260 is also super powerful in audio decoding. With a long list of audio formats supported including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, It’s also capable of switching audio On/Off, audio mix and audio gain in real-time to output alternatively through its HDMI ports, SDI port and 3.5mm line out port.

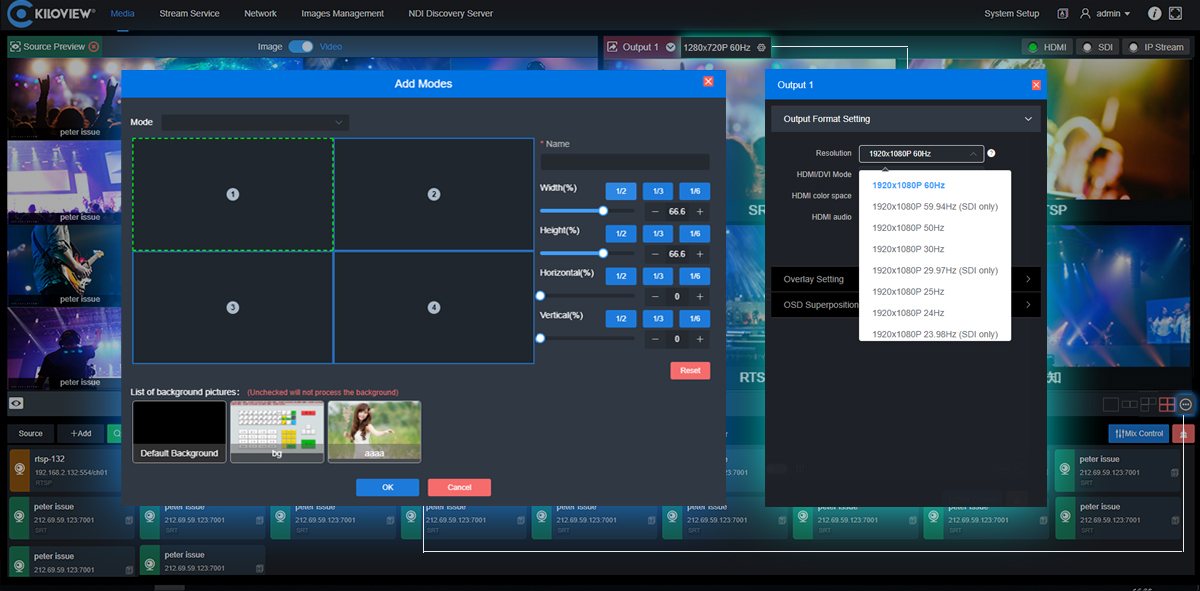

Custom Layouts

Custom multi-output display is also allowed for D260(including custom grids/PIP/simply drag and drop). All things about display(bit-rate and resolution) can be customized.kiloview dc260 customized layout new 0519 1

Display and Touch Button

D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.Screenshot 2023 09 22 123521 jpg

Tech Specs&Features

ModelD260
Video Output2*HDMI
1*3G-SDI
Audio OutputHDMI、SDI and 1*3.5mm Line out
Video FormatsH.264(AVC), Compatible with Baseline/Main/High Profile, up to Level 5.2；
H.265(HEVC)Compatible with Main Profile, up to Level 5.1
Video Decoding4 channels of H.264(AVC)/H.265(HEVC) video streams in resolution of 1080p60
Audio FormatsAAC/MPEG-4/MPEG-2/G.711/Opus/LPCM
Streaming protocolsNDI|HX2/NDI|HX3*/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/ RTSP
(*: NDI|HX3 feature is under development and we will confirm when it has been certified by NDI.)
Display0.96”LCD Display and Touch Button
LayoutsCustom 1/2/3/4 layouts
IntercomYes
OSDYes
TallyYes
Network ConnectionsEthernet Ports: 2*10/100M/1000M
USB Ports1*USB 2.0 Type-C
1*USB 2.0 Type-A
Power SupplyDC 12V/1A
ManagementWebUI/KiloLink Server
Power Consumption7W(MAX)
Size162.85mm x 104.00mm x 25.00mm
Weight328.18g
Operating Temperature-20℃~60℃
Support DownloadDocs & Firmware

Quick Comparison of our Decoders

Product TypeProduct ModelOutput InterfaceResolutionDecoding Performance
H.265 4K Video DecoderD3503G-SDI + HDMI 2.0*2SDI: up to 1920×1080@60Hz;
HDMI: up to 3840×2160@60Hz		Up to 9 Video Streams Simultaneously Decoding, 1/2/3/4/5/6/7/8/9 Splitting Screen and Dynamic Switching Supported
4-Channel H.265 Video DecoderD2603G-SDI + HDMI 2.0*2SDI: up to 1920×1080@60Hz;
HDMI: up to 1920×1080@60Hz		Up to 4 Video Streams Simultaneously Decoding, 1/2/3/4 Splitting Screen and Dynamic Switching Supported

D260%E4%BA%A7%E5%93%81%E8%A7%A3%E7%A0%81%E5%BA%94%E7%94%A8%E6%8B%93%E6%89%91%E5%9B%BE en
